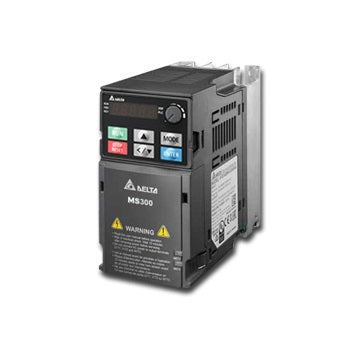

VFD7A5MS21ANS 1.5KW 1Phase 180-264V AC Motor Drive

VFD7A5MS21ANS 1.5KW 1Phase 180-264V 50/60HZ AC Motor Drive (3Phase Output Voltage)

Dimensions: 142(H)x72(W)x152(D)mm

MS300 Series Compact Drives

MS300 series drives, optimised for space utilisation with up to 40% size reduction compared to existing models. They support induction and permanent magnet motors with high-speed start-up and fast acceleration/deceleration.

• Control method: V/F, SVC
• Max. Output Frequency: 0 to 599.00Hz (0 to 1500Hz high-speed models)
• Overload Tolerance:
• Normal Duty:  120% of rated output current for 60sec, 150% for 3sec
• Heavy Duty: 150% of rated output current for 60sec, 200% for 3sec
• Frequency Setting: 0-+10V+10 - -10V, 4-20mA, 1pulse input/output (33KHZ)
• Motor Protection: Overcurrent, overvoltage, over-temperature, phase failure protection
• Built-in PLC Functionality (2K steps functionality)
• Built-in Dynamic Braking Transistor (brake chopper)
• Removable 5-digit LED keypad for remote operation
• Multi-motor Control
• Easy setup with selectable pre-loaded parameters for different applications
• Safety standard compliance: Safe torque off (SIL2/PLd) function offers high safety machine stop
• Built-in USB port for fast convenient tuning, parameter edit/copy, software update
• New PCB coating
• Built-in RS-485 communication (Profibus, DeviceNet, Modbus TCP, Ethernet/IP, CANopen
