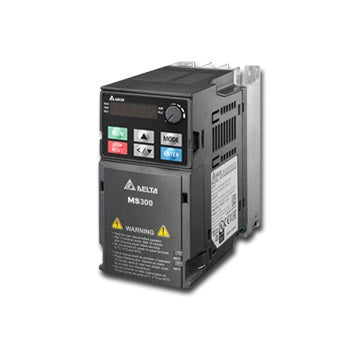

VFD5A5MS43ANS 2.2KW 3Phase 380-480V AC Motor Drive

VFD5A5MS43ANS 2.2KW 3Phase 380-480V 50/60HZ AC Motor Drive

Built-in EMC Filter (Class A C2)

Dimensions: 157(H)x87(W)x179(D)mm

MS300 Series Compact Drives

MS300 series drives, optimised for space utilisation with up to 40% size reduction compared to existing models. They support induction and permanent magnet motors with high speed start-up and fast acceleration/deceleration.

Control method: V/F, SVC

Max. Output Fequency: 0 to 599.00Hz (0 to 1500Hz high speed models)

Overload Tolerance: Normal Duty:  120% of rated output current for 60sec, 150% for 3sec

                                     Heavy Duty: 150% of rated output current for 60sec, 200% for 3sec

Frequency Setting: 0-+10V+10 - -10V, 4-20mA, 1pulse input/output (33KHZ)

Motor Protection: Overcurrent, overvoltage, over-temperature, phase failure protection

Built-in PLC Functionality (2K steps functionality)

Built-in Dynamic Braking Transistor (brake chopper)

Removable 5-digit LED keypad for remote operation

Multi-motor Control

Easy setup with selectable pre-loaded parameters for different applications

Safety standard compliance: Safe torque off (SIL2/PLd) function offers high safety machine stop

Built-in USB port for fast convenient tuning, parameter edit/copy, software update

New PCB coating

Built-in RS-485 communication (Profibus, DeviceNet, Modbus TCP, Ethernet/IP, CANopen
