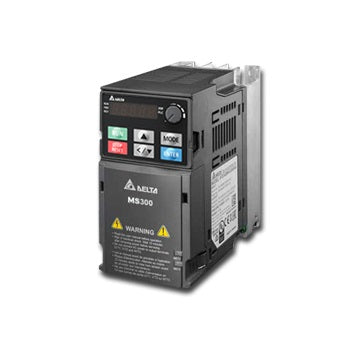

VFD32AMS43ANS 15KW 3Phase 380-480V 50/60HZ AC Motor Drive
Built-in EMC Filter (Class A C2)
Dimensions: 250(H)x130(W)x219(D)mm
MS300 Series Compact Drives
MS300 series drives, optimised for space utilisation with up to 40% size reduction compared to existing models. They support induction and permanent magnet motors with high speed start-up and fast acceleration/deceleration.
Control method: V/F, SVC
Max. Output Fequency: 0 to 599.00Hz (0 to 1500Hz high speed models)
Overload Tolerance: Normal Duty: 120% of rated output current for 60sec, 150% for 3sec
Heavy Duty: 150% of rated output current for 60sec, 200% for 3sec
Frequency Setting: 0-+10V+10 - -10V, 4-20mA, 1pulse input/output (33KHZ)
Motor Protection: Overcurrent, overvoltage, over-temperature, phase failure protection
Built-in PLC Functionality (2K steps functionality)
Built-in Dynamic Braking Transistor (brake chopper)
Removable 5-digit LED keypad for remote operation
Multi-motor Control
Easy setup with selectable pre-loaded parameters for different applications
Safety standard compliance: Safe torque off (SIL2/PLd) function offers high safety machine stop
Built-in USB port for fast convenient tuning, parameter edit/copy, software update
New PCB coating
Built-in RS-485 communication (Profibus, DeviceNet, Modbus TCP, Ethernet/IP, CANopen
