VFD040C4EA-21 4KW 3Phase 380-480VAC 50/60HZ

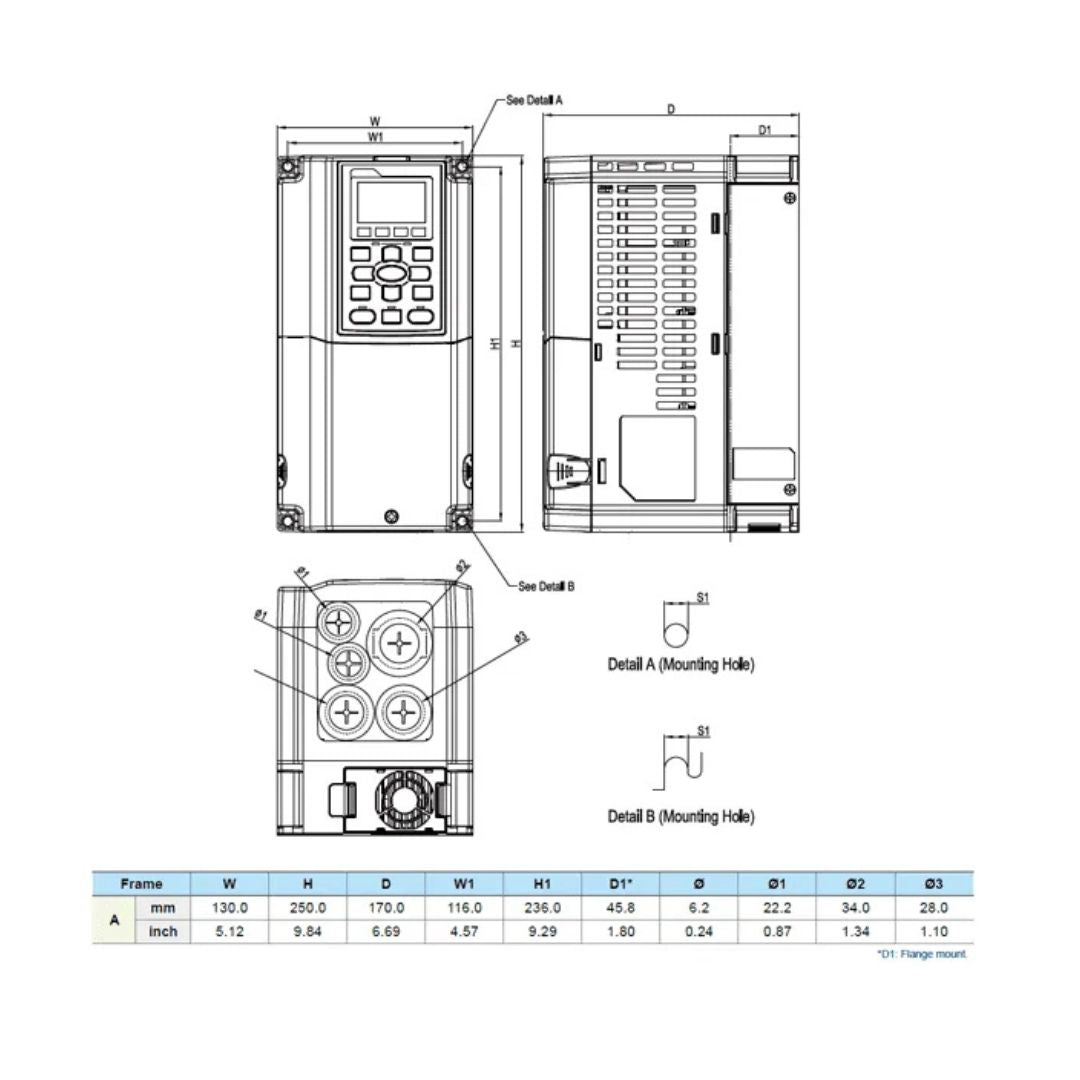

Dimensions: 250(H)x130(W)x170(D)mm
-

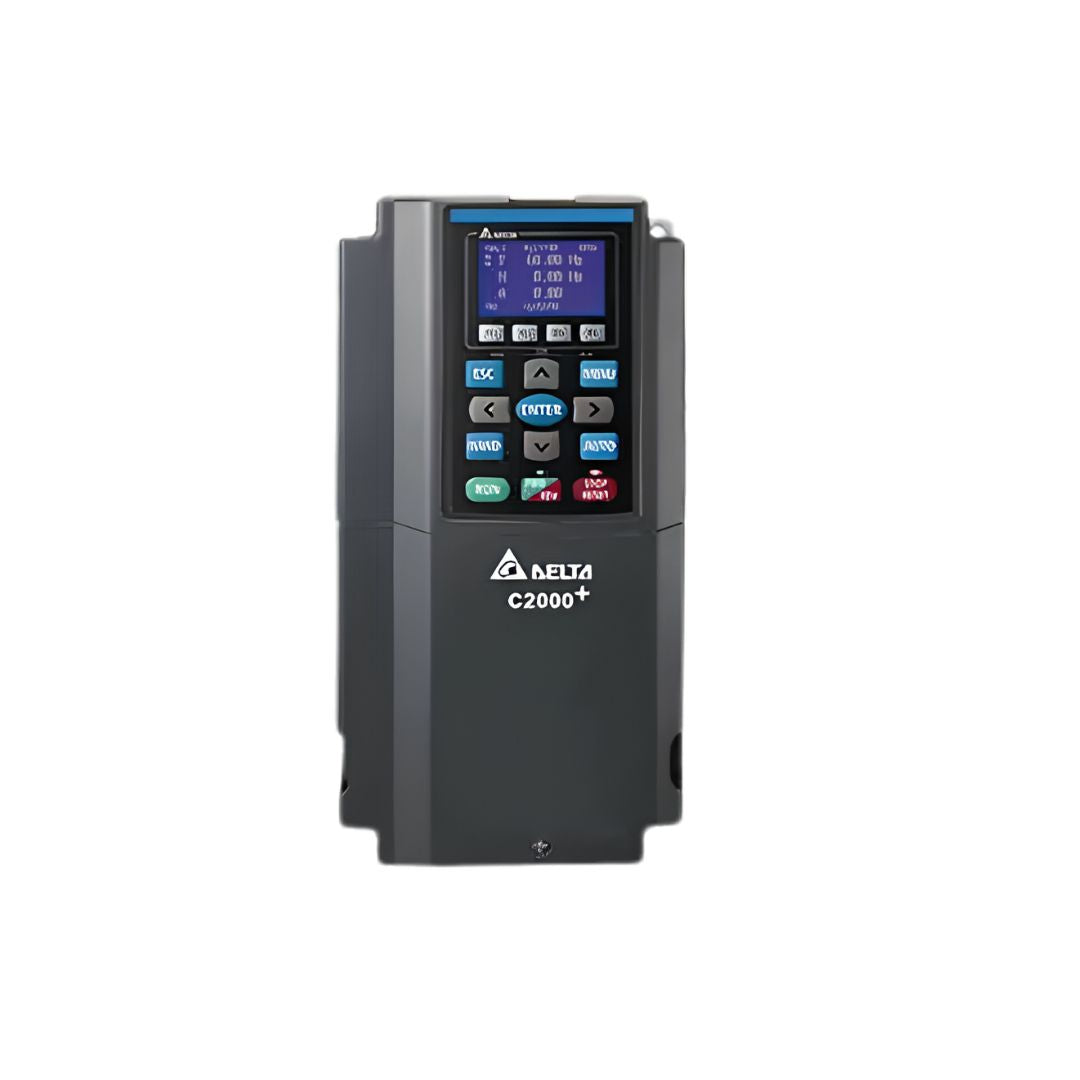

C2000 Series – High Performance AC Motor drive
C Series Drives utilise FOC (field orientated control) as the core technology to fulfil high starting torque requirements and accurate speed and torque control, they offer PID adjustment, with simple operation interface.
- Up to 37kW built-in braking chop and EMI filter
- Speed/torque/position control mode
- Improved Sensorless Vector control (SVC) and torque control for Crane Applications
- Outstanding 4-Quadrant Torque/control/limit
- Intelligent PLC function (10k steps, 19points: 10DI/4DO – 3AI/2AO)
- Synchronous position control
- Modular design for ease of maintenance with many expansion extensions
- High-speed communication interface with built-in CANopen and MODBUS communication
