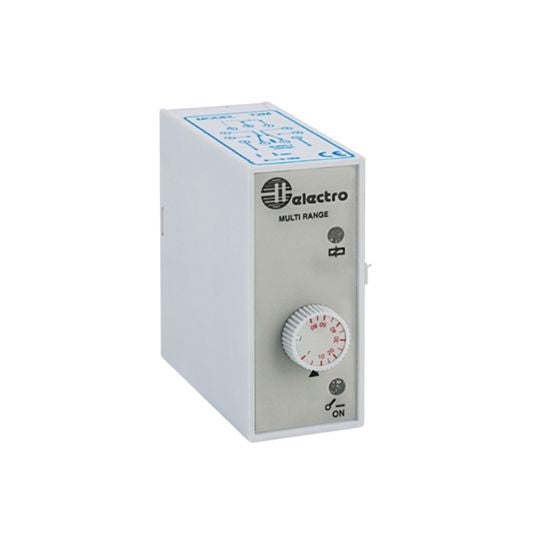

V1C230A400MV 230VAC VOLTAGE MONITOR 40-400VAC
11 pin plug-in - Suitable Bases - 90.21 11pin Base
The V1C is a precise UNDER / OVER voltage monitoring relay. The unit can be ordered in many AC / DC voltage ranges, making it ideal for many voltage monitoring applications. The set point and hysteresis can be adjusted with separate potentiometers. The unit also incorporates a latch facility to prevent undetected failures.
Features:
- Output 10A SPDT relay
- Latch facility incorporated
- Measures separate voltage input
- Monitoring relay for voltage control
- Power supply ON and Relay ON LEOs
- Potentiometer adjustable voltage limits
- Potentiometer adjustable hysteresis limits
- Rear DIPswitch selection for 10sec start-up delay
- Rear DIPswitch selection of UNDER / OVER voltage
