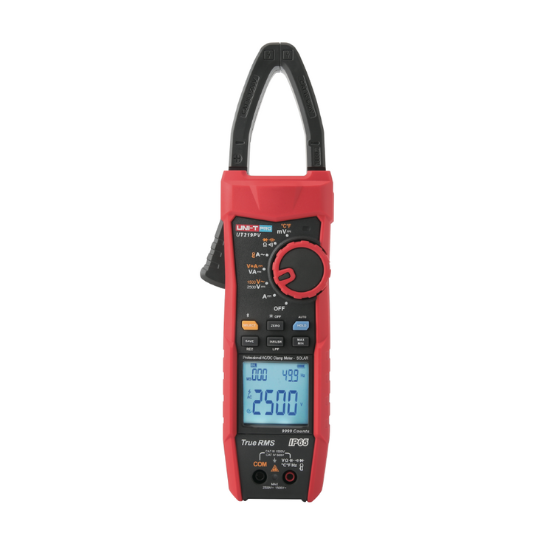

The UT219PV is an advanced AC/DC clamp meter specially designed for high-voltage photovoltaic environments. It offers exceptional accuracy and performance, with a wide range of features. With its automatic range selection and a clear display capable of showing up to 9999 digits, this clamp meter allows for precise measurements of AC/DC voltage, current, low-pass filtered voltage/current, surge current, peak current, DC power (using an external flexible clamp head), resistance, circuit continuity, diodes, capacitance, and temperature. Its versatility extends beyond photovoltaic applications, as it can also be used in other high-voltage settings like energy storage systems, uninterruptible power supplies (UPS), and large motors.
Features
- 35mm Ultra-thin Jaw: suitable for inverter or combiner box
- Voltage measurement: AC1500V/DC2500V
- Current measurement: AC/DC 1000A
- Power DC: 2500KVA
- External clamp sensor: UT-CS09D(AC 3000A)
- Solar panel polarity indication: when <-10 DCV, Audible & Visual alarm
- Bluetooth APP
- Auto backlight & Auto power off
- Certificates:CE (EMC, LVD), cETLus, RoHS
- Safety rating:CAT III 1500V/ CAT IV 600V
- IP65
