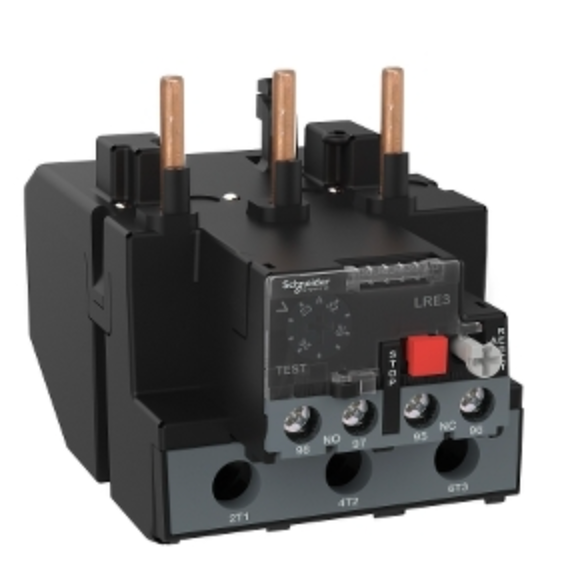

LRE363 Thermal Overload Relay EasyPact TVS

EasyPact TVS differential thermal overload relay 63...80 A - class 10A

The LRE relay is a differential thermal overload relay for use with fuses or magnetic circuit-breakers GV2 L and GV3 L. Its thermal setting range is 63-80A 50/60Hz and the tripping class is 10A conforming to IEC 60947-4-1. It can be direct mounted on EasyPact TVS contactors with screw clamp terminals connection. It protects unbalanced loads and motors with 37- 45kW at 400VAC. It provides manual or automatic reset, trip auxiliary contact, and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach).
