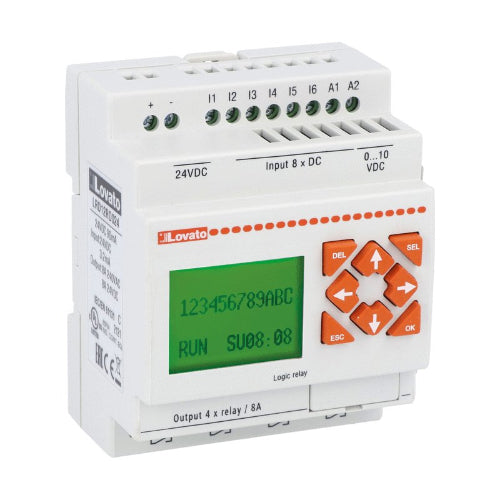

LRD12RD024 Micro PLC 24VDC 8inputs - 4outputs - Intelligent Relay
- Supply - 24VDC
- Inputs - 8
- Outputs - 4
- 2/4 inputs can be analog (0-10VDC)
Lovatos micro PLC is a compact, flexible, easy to use and highly cost effective intelligent relay. Base units are available with 10,12 or 20 I/O points and can be expanded up to 44 digital I/O points with plug-in expansion modules. Programming is simple and intuitive and can be done directly with the built-in keypad/display or by personal computer with LRX SW software and LRX C03 programming USB cable.
- Two common language logics are available for programming:
- LD (relay ladder) up to 300 lines of four instructions each
- FBD (function block diagram) up to 260 programmable blocks
Key features:
Advantages:
- Quick control board installation
- Fewer number of components
- Less wiring with minor number of connections
Repetitiveness:
- Considerable time saving
- Less errors during panel building
Flexibility:
- Fast changes on control boards
- Quick correction of abnormal conditions at final testing
System control and supervision:
- Contact status viewing in simple and small screen display
- Possibility to add the micro PLC to equipped with LREP00 Modbus to systems integrated on data networks by using Synergy (supervision and energy management software)
