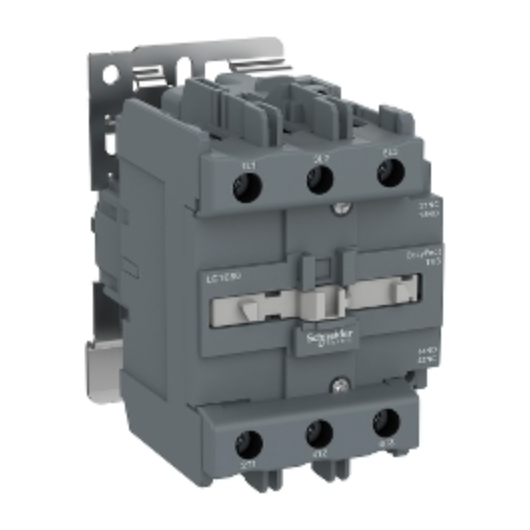

LC1E80N5 - 37kW 80A 415V - EasyPact TVS Contactor

• 1 NO + 1 NC
• DIN Rail
• 80A 37kW @ 440V

EasyPact TVS contactor 3 poles for motor applications up to 80A 45kW@440V. It provides a 415V 50Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals. 85mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.9 Mcycles electrical durability AC-3 and 3 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
