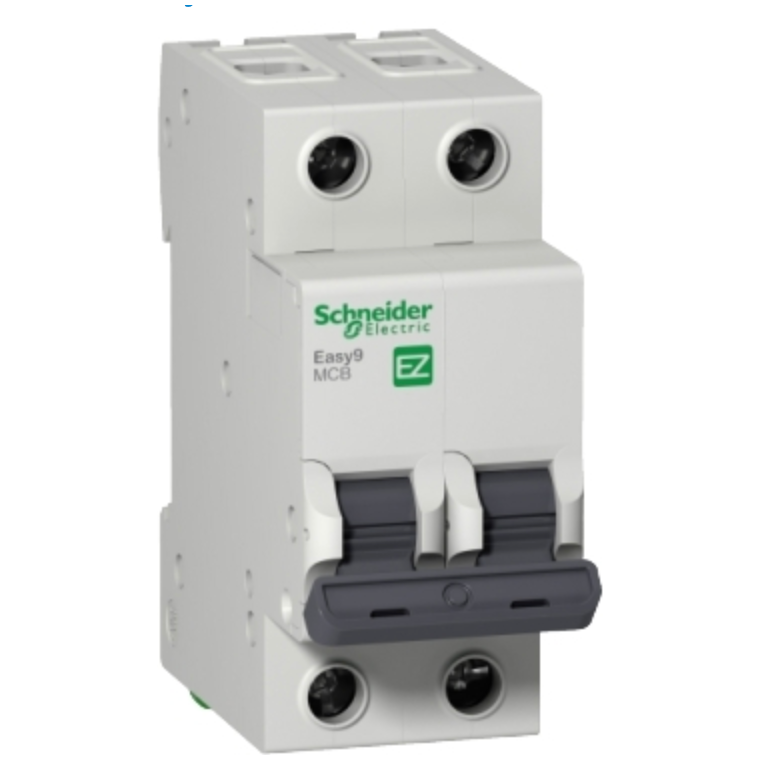

EZ9F53216 2P 16A 3KA C Curve Breaker Easy9

This Easy9 product is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles and 16A In rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 3kA at 400VAC conforming to EN/IEC 60898-1 standard. It is compliant with IEC 60898-1 standard.

This product has a protection against short circuit and a protection of cable against overloads. It has a fault tripping indication on the front panel by the position of the handle (O-I engraved). This product is dedicated for residential and small commercial buildings. It has an electrical endurance going up to 4000 cycles and a mechanical endurance going up to 10000 cycles.

The Ue operational voltage is 400VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. It can be mounted on DIN rail for modular installation. Its width is 4 pitches of 9mm.
