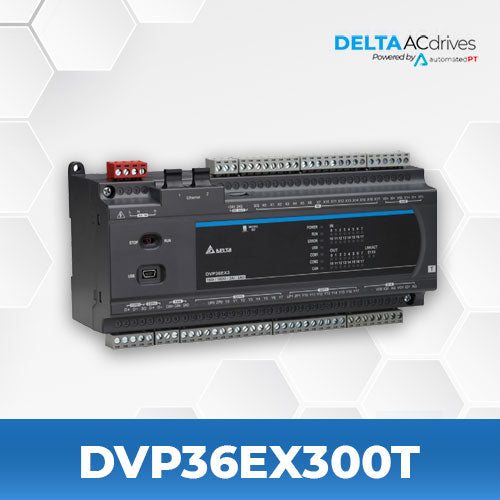

DVP PLC EX3 PLC Range employs the AS series PLC's 32bit high speed processor, provides a user friendly programming interface, Built-in Analog I/O and multiple communication ports.
Built-in PID Auto Tuning function, offering a complete analog control solution
- Voltage: 100-240VAC
- Ouput: Transit (NPN)
- 16 Digital Inputs - 16 Digital Outputs - 2 Analog Inputs - 2 Analog Outputs
Common Characteristics
- 32-bit CPU For High Speed Processing
- Program Capacity - 64k steps
- Software - DIADesigner/ISPSoft
- Min. execution time of basic instruction: 25ns
- Built-in Etherner port, 2x RS-485ports, USB port, CANopen port, Micro SD card interface.
- Supports EtherNet/IP, Modbus TCP, CANopen DS301 (64devices)
- Removable Terminal Blocks
Excellent Motion Control
- High Speed counter: 200kHz x 4 (A/B phase)
- High Speed pulse out: 200kHz x 4 (pulse + direction)
- 2-axis interpolation (linear & arc)
- 8 axes CANopen point-to-point motion control (with Delta servo drives only)
