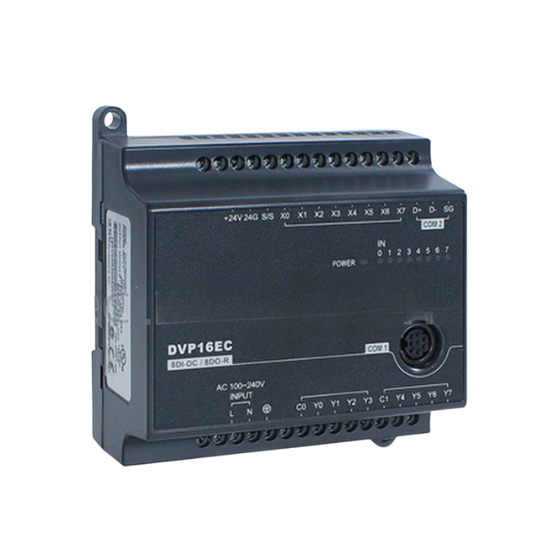

EC3 economic series PLC 100 - 240 VAC
DVP-EC3 series is the most economical solution for sequential control and communication monitoring for smaller applications with simple RS485/MODBUS communication.
Key features:
- Program capacity: 4k steps
- Mounting: DIN-rail or chassis mounting
- High-speed pulse output: Max. 11kHz pulse output
- MPU I/O points: 10/14/16/24/32/48 points (not expandable)

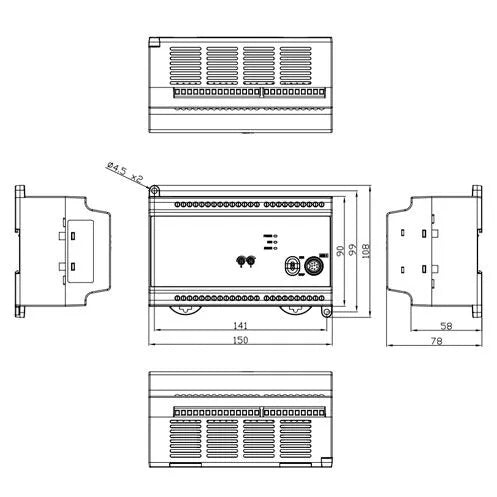

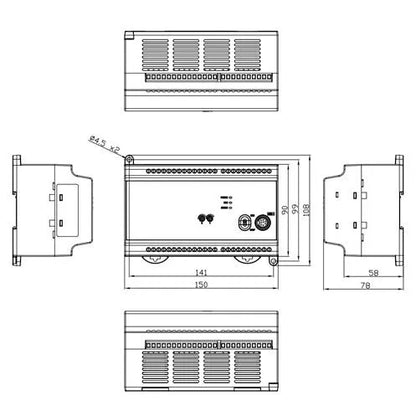

- Compact: (H) 90 x (D) 45.5 mm (W) no. I/O point dependant
- Built-in high-speed counters: 2x 20/10kHz, 1x 20kHz, 1x 4kHz
- COM ports: Built-in RS232 & RS485 (only for 16/24/32/48 points)
- Supply - 100-240VAC
- Digital Input - 12
-
Digital Output - 12
- Description - Standard economic PLC
- Output type - Relay
