Input/Output extension modules for ES2/EX2 series
ES2/EX2 series PLCs are compact highly efficient, functional instruments with incorporated communication capabilities, advantages such as built-in convenient commands offer easy access to operation and communication function monitoring.
Key features:
- Adopts 32-bit CPU
- Plug-in termination
- DIN rail mounting or chassis mount
- Built-in 3 COM ports 1x RS232 and 2 x RS485
- Program capacity: 16k steps / data register: 10k words

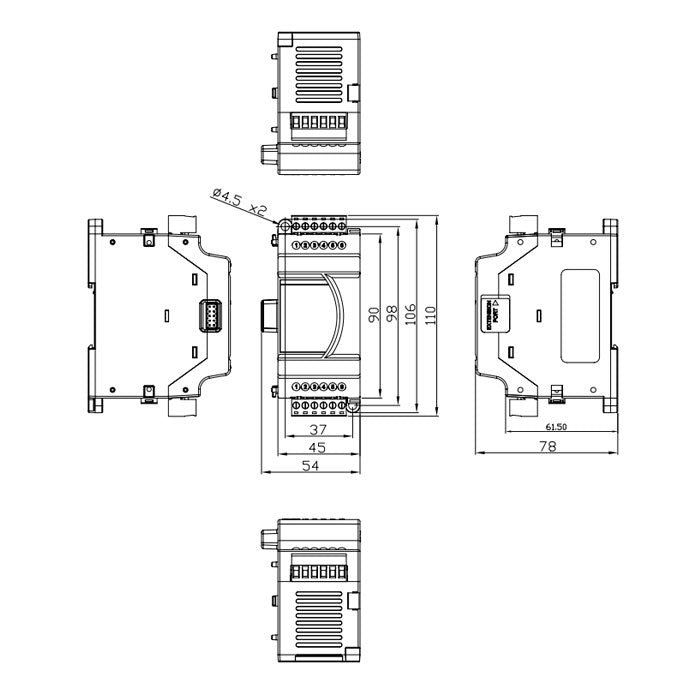

- Compact dimensions (H) 90 mm x (D) 60 mm DIN rail mounting
- Exclusive instructions and functional blocks designed for PV solar tracker
- Plugs directly into PLC - 24 VDC - supply derived from MPU (limited to 12W)
- New motion control instructions: Close loop control, alignment mark, shield etc.
- Built-in high speed inputs (2x 100 kHz 6x 10kHz) supports U/D, U/Ddir, A/B counting modes
Extension Module for EX2/ES2 series
- Supply - 24VDC
- Digital Inputs - 4
- Digital Outputs - 4
- Expansion Module
- Output type: Relay
