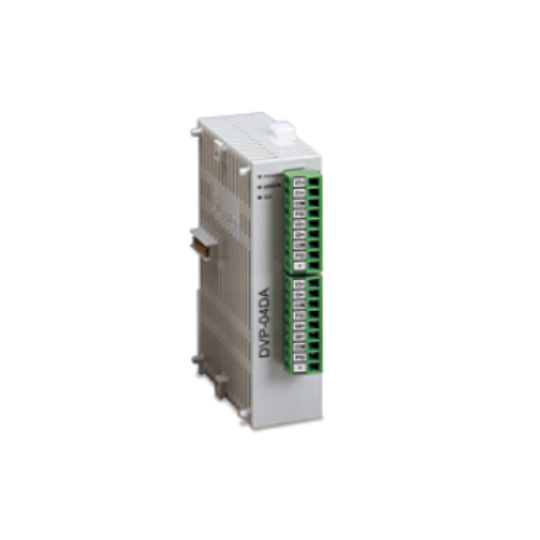

Extension modules for SS/SA/SE/SX/SV/MC PLCs
Extension modules simply clip onto MPUs to add many additional functions, additional digital and/or analog I/Os, communication, temperature measurement and load cell monitoring.
Key features:
- Resolution: Analog 16-bit, sensor: 0.1°C
- Analog inputs: 0 - 10V, 0 - 20mA, 4 - 20mA
- Simply clips onto and derives supply from main MPU
- Thermocouple: J, K, R, S, T, E, N, B, C, L, U, TXK, PLII
- Output point: Built-in PID program control/manual control
- DVP02TU series temperature control modules (universal input)
- General extension (right side) - High speed extension (left side)
- RTD: Pt100, JPt100, Pt1000, Cu50, Cu100, Ni100, Ni1000, LG-Ni1000
Supply - 24VDC
Inputs - 2
Outputs - 2
Description - Temperature control modules(universal input)
Mounting - Right side
Output Type - Analog Output voltage/current
