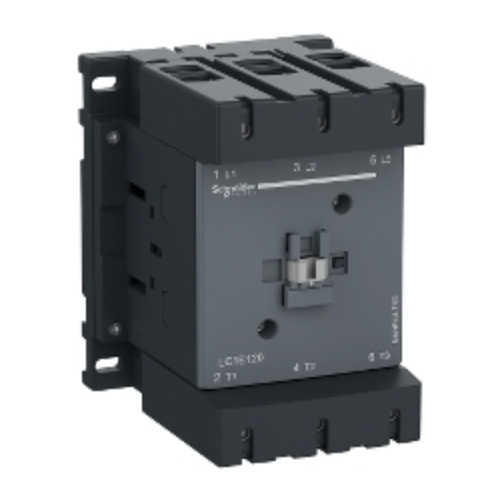

LC1E160F5 90kW 150A 110V EasyPact TVS Contactor

• 1 NO + 1 NC

• DIN Rail
• 150A 90kW @ 110V

EasyPact TVS contactor 3 poles for motor applications up to 160A 80kW@440V. It provides a 110V 50Hz AC coil, 3NO built-in auxiliary contacts, power and control connections by screw clamp terminals. 120mm width for standard operating rates up to 1200 cycles per hour. It procures standard reliability and durability with 0.8 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability. It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude. Multi-standards certified (IEC, CCC, EAC) and Green Premium compliant (RoHs/Reach).
