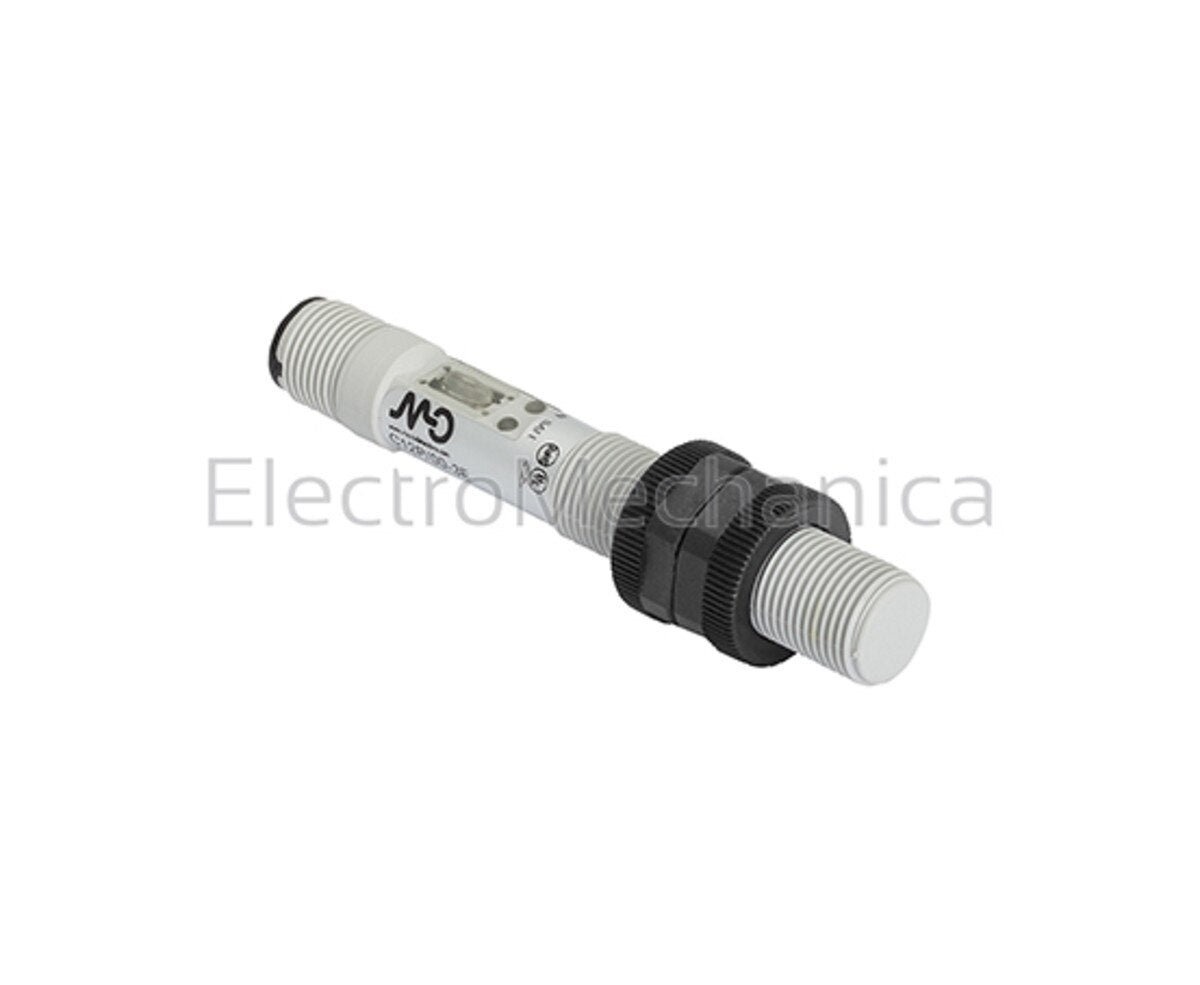

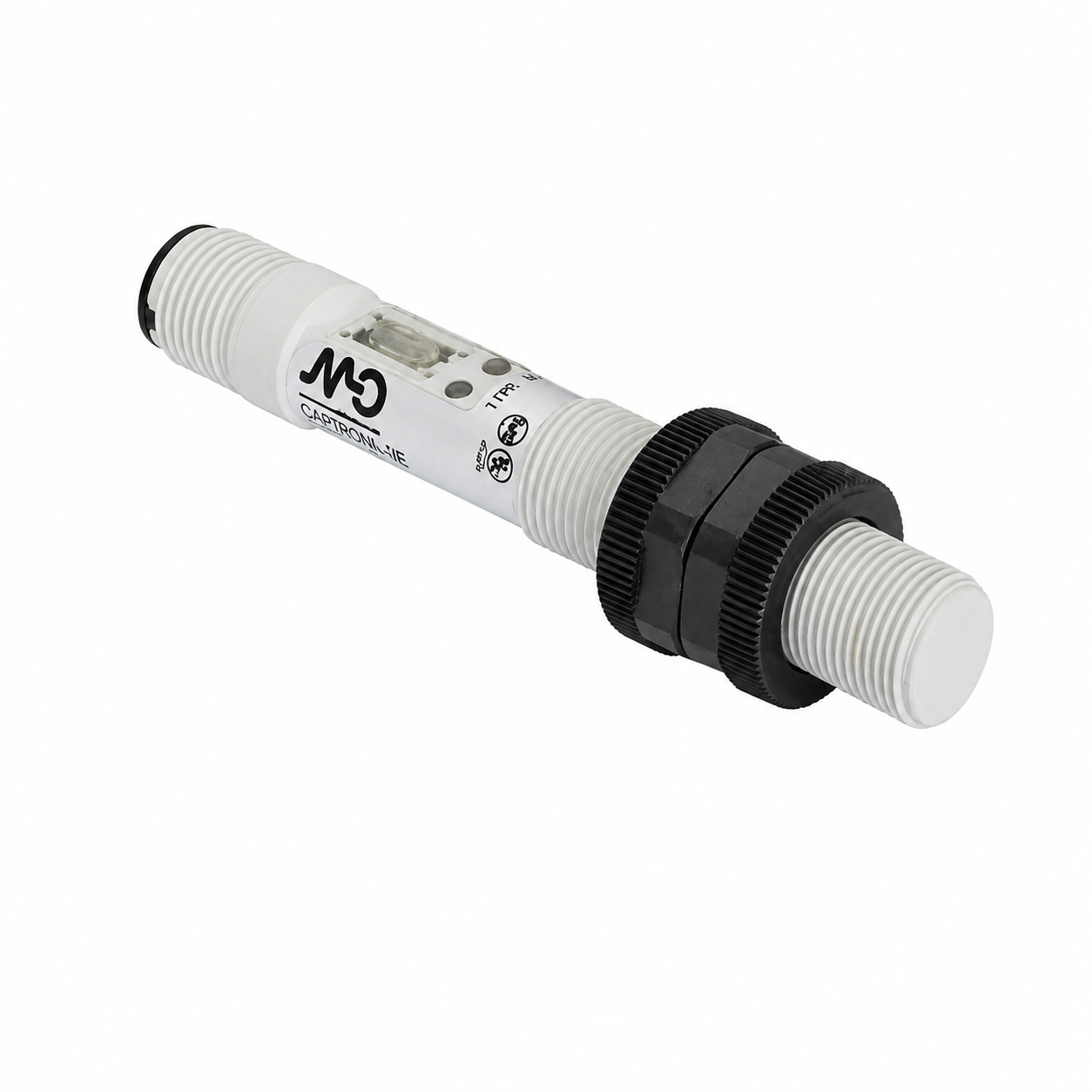

C18P/BN-1E M18 10-40VDC 3-8mm NPN NO+NC Flush Capacitive Proximity Sensor
Key features:
- Detects powders, granulates, liquids and solids
- Sensitivity adjustment
- Short circuit and polarity reversal protection
- Protection degree: IP67/68/69K
- Ambient limits: -20 ... +85°C
- LED indication: Incorporated
- Housing material: Thermoplastic polyester
- Adjustable sensitivity via potentiometer
- Standard output: NO and NC
Description:
- Index Protection: IP67
- Housing Material: Thermoplastic Polyester
- Supply Voltage: 10-40VDC
- Flush
- Sensing Distance: 3-8mm
- NPN
- NO+NC
- M12, 4Pin plug connection
- Body Length - 83mm
