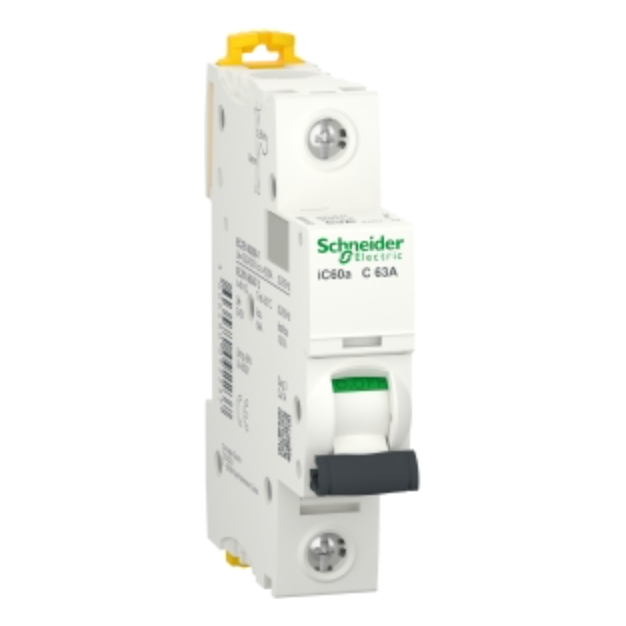

The Acti9 iC60a 63A 1P Miniature Circuit Breaker (MCB) provides reliable protection against short circuits and overload currents in residential, commercial and industrial electrical installations.
Designed for DIN rail mounting, this 63A single-pole circuit breaker features a C tripping curve and incorporates Schneider Electric’s VisiTrip and VisiSafe technologies for easier fault identification and safer maintenance.
Key Features
- Rated Current: 63A
- Number of Poles: 1P
- Protected Poles: 1
- Tripping Curve: C Curve
- Breaking Capacity: Up to 6kA at 220–240VAC
- Breaking Capacity: 4.5kA at 230VAC
- Rated Insulation Voltage (Ui): 500VAC
- Mounting: DIN rail
- Width: 18mm (2 × 9mm pitches)
- Pollution Degree: 3
- Terminal Protection: IP20B
- Operating Temperature: -35°C to +70°C
- Storage Temperature: -40°C to +85°C
- Limitation Class: 3
Benefits
- Protects electrical circuits against overload and short-circuit currents
- VisiTrip indicator quickly identifies the faulty circuit, helping reduce intervention time
- VisiSafe green indicator confirms physical opening of the contacts for safer downstream maintenance
- Fast-closing mechanism operates independently of manual switching speed, helping improve product service life
- Limitation Class 3 improves protection of downstream circuits
- Compact design for easy installation on standard DIN rails
Standards
Complies with EN/IEC 60898-1 and EN/IEC 60947-2 standards, making it suitable for a wide range of residential, commercial and industrial applications.
