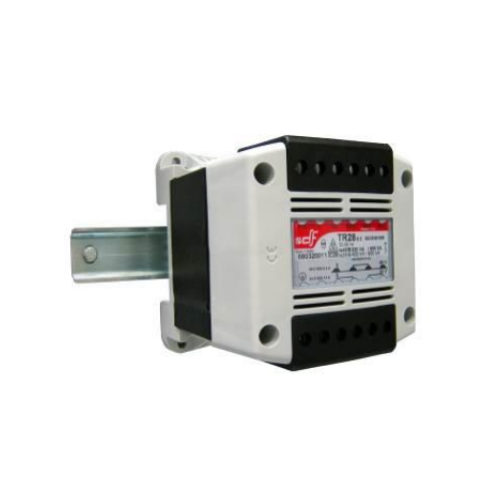

680100040 100VA Control Transformer - Secondary Voltage 12 - 24V
Primary voltage: 240V - 400V - 525V
Control and safety or isolating single-phase transformers supply high instantaneous power for the correct operation of contactors and other control and switchgear.
Features:
- Thermal class: B (130°C)
- Class: Class I
- Frequency: 50/60 Hz
- DIN rail mountable
- Secondary voltages: 12 - 24V
- Protection degree: IP20 protection (finger safe)
- Dielectric strength: Primary - secondary > 4.5kV
- Standards: IEC/EN 61558-1, IEC/EN 61558-2-2 /-2-4 /-2-6
- Serial-parallel secondary bridge pieces for ease of connection
- Primary voltages: 240V - 400V - 525V (with regulation taps + and - 20V)
- High capacity clamp terminals (10 mm2 up to 400VA / 25 mm²up to 1250VA)
- High flexibility - several primary rated voltages (with regulation taps +20V or -20V)
